VP750 VISCOSITY PROCESSOR SPECIFICATION | ||
VISCOMETER LINK | Sensor Data Link | Digital data link and sensor power for Hydramotion viscometers |
DISPLAY | Large character backlit matrix LCD display | |
DISPLAY UNITS | Viscosity | User selectable cP, P, mPa.s, Pa.s |
| Temperature/Pressure | User selectable metric / imperial | |
LED INDICATORS | Sensor Data Link Status | Indicates sensor data traffic (red/green) |
| Alarm Status | Indicates measurement system alarm status (red/green) | |
OUTPUTS | Analog (3) | 3 × 4-20mA configurable, representing viscosity, ref. viscosity, or temperature |
| Alarm Contacts (2) | 2 x volt free completely assignable | |
| Digital Data Port | RS485 ModBus Data Link to host system or PC running ViscoLink | |
| USB | USB II Data Interface | |
INPUTS | Analog (3) | External temperature 4-wire RTD or 4-20mA – user assignable |
| Density 4-20mA | ||
| Pressure 4-20mA | ||
CONNECTIONS | I/O Connectors | Field rewirable Binder connectors |
POWER | Power Consumption | 24 V DC @ 150mA |
DIMENSIONS | H 174mm x W 224mm x D 70mm | |
ENCLOSURE MATERIAL | Machined from high grade Al 6082 Alloy | |
WEIGHT | 1.7Kg | |
SOFTWARE | ViscoLink data viewing and logging PC software | |
| As it is Hydramotion’s policy to continuously develop and improve its products, some specifications may change without notice | ||

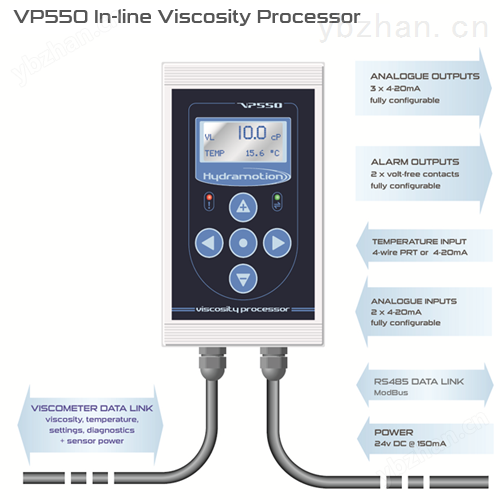

VP550 IN-LINE VISCOSITY PROCESSOR SPECIFICATION | ||
VISCOMETER LINK | Sensor Data Link | Digital data link and sensor power for Hydramotion viscometers |
DISPLAY | Large character backlit matrix LCD display | |
DISPLAY UNITS | Viscosity | User selectable cP, P, mPa.s, Pa.s |
| Temperature/Pressure | User selectable metric / imperial | |
LED INDICATORS | Sensor Data Link Status | Indicates sensor data traffic (red/green) |
| Alarm Status | Indicates measurement system alarm status (red/green) | |
OUTPUTS | Analog (3) | 3 × 4-20mA configurable, representing viscosity, ref. viscosity, or temperature |
| Alarm Contacts (2) | 2 x volt free completely assignable | |
| Digital | RS485 ModBus Data Link to host system or PC running ViscoLink | |
| USB | USB II Interface (VP550L) | |
INPUTS | Analog (3) | External temperature 4-wire RTD or 4-20mA – user assignable |
| 2 × 4-20mA | ||
CONNECTIONS | I/O Connectors | Field rewirable Binder connectors |
POWER | Power Consumption | 24 V DC @ 150mA |
DIMENSIONS | H 200mm x W 120mm x D 90mm | |
ENCLOSURE MATERIAL | Polycarbonate | |
MOUNTING | Surface or panel mounting | |
WEIGHT | 920g | |
INGRESS PROTECTION | IP65 | |
SOFTWARE | ViscoLink data viewing and logging PC software | |
| As it is Hydramotion’s policy to continuously develop and improve its products, some specifications may change without notice | ||
VP250 VISCOSITY MODULE SPECIFICATION | ||
VISCOMETER LINK | Sensor Data Link | Digital data link and sensor power for ViscoJet viscometers |
DISPLAY | Large character backlit matrix LCD display | |
DISPLAY UNITS | Viscosity | User selectable cP, P, mPa.s, Pa.s |
| Temperature/Pressure | User selectable metric / imperial | |
OUTPUTS | Analog | 4-20mA configurable, representing viscosity, ref. viscosity, or temperature |
| Sensor Data Link Status | RS485 ModBus Data Link to host system or PC running ViscoLink | |
INPUTS | Analog | External temperature 4-wire RTD |
POWER | Power Consumption | 24 V DC @ 150mA |
DIMENSIONS | H 60mm x W 70mm x D 86mm | |
ENCLOSURE MATERIAL | Polycarbonate | |
MOUNTING | Top-hat DIN EN60715 rail | |
WEIGHT | 160g | |
SOFTWARE | ViscoLink data viewing and logging PC software | |
| As it is Hydramotion’s policy to continuously develop and improve its products, some specifications may change without notice | ||
