| 參 考 價 | 面議 |
產品型號
品 牌
廠商性質其他
所 在 地北京市
聯系方式：查看聯系方式
更新時間：2025-01-21 08:52:22瀏覽次數：123次
聯系我時，請告知來自 儀表網頻率范圍0
| 頻率范圍 | 0.7GHz-9GHz |
| 大輸入功率 | 300W(1GHz) 100W(6GHz) 具體見datasheet |
| 增益 | 10.3dBi具體見Datasheet |
| VSWR | <1.5:1 具體見Datasheet |
| 阻抗 | 50ohm |
| 連接頭 | N female |
| 尺寸（長*寬*高） | 460*270*270mm |
| 重量 | 3.7Kg |

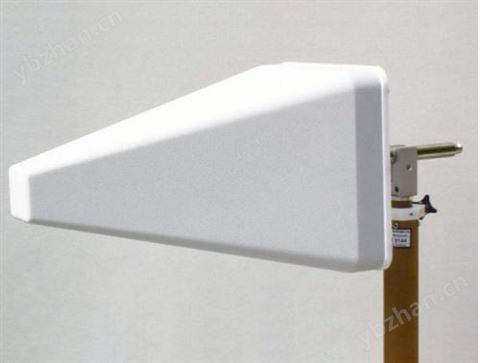

| The stacked Logarithmic Periodic Dipole Antenna consists of two ordinary Log.-Per. structures. The excellent characteristics (flat gain over a large bandwidth, low SWR) of the ordinary Log.-Per. designs could be maintained using the stacked LP design. The stacked design helps to focus the directional pattern of the H-plane somewhat, resulting in a typical gain improvement of ca. 2-3 dB compared to an ordinary LPDA. This is especially important for immunity testing, where a maximum fieldstrength and a good field uniformity is required. The beamwidth in the E-plane and the H-plane are nearly identical, providing an optimised illumination of the EuT with minimised ground reflection influence. Further the STLP 9128 C has an excellent cross-polar rejection.
Option: with 7/16-connector 3 kW Option: with [13-30-connector] limited to 2500 MHz but higher power up to 8 kW including adapter similar to AA 9202
| |||||||||||||||||||||||||||||||||||||||||||||||
|
