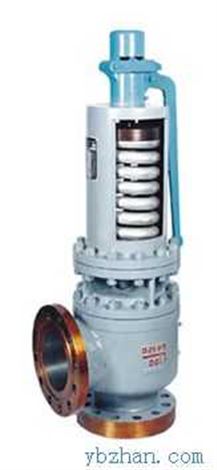

- 電站高溫高壓安全閥閥
本閥門適用于工作溫度“C型"≤425℃；“I型"≤500℃；“V型"≤500℃；的蒸汽等介質設備或管路上，作為超壓保護裝置。連接法蘭標準按JB/T……94系列1、系列2。
主要零部件材料
NO. | 零件名稱 | C型材料 | I型材料 | V型材料 |
1 | 閥體 | WCB | ZG1Cr5Mo | ZG15Cr1Mo1V |
2 | 閥座 | 2Cr13 | 1Cr18Ni9Ti | 12Cr1MoVA |
3 | 調節圈 | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
4 | 閥瓣 | 2Cr13 | 17-4PH | 17-7PH |
5 | 導向套 | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
6 | 散熱器 | ZG230-450 | ZG230-450 | ZG230-450 |
7 | 閥蓋 | ZG230-450 | ZG230-450 | ZG230-450 |
8 | 彈簧 | 50CrVA | 50CrVA | 50CrVA |
■外形尺寸和連接尺寸
型號 | 公稱 通徑 | do | D | K | g | g1 | b | f | f1 | Z-?d | DN" | D1 | K1 | g3 | g2 | b1 | f" | f1" | z1-?d1 | L | L1 | ≈H |
SFA48Y-16C SFA48Y-16I SFA48Y-16V | 40 | 25 | 150 | 110 | 85 | 18 | 3 | 4-18 | 50 | 165 | 125 | 100 | 20 | 3 | 4-18 | 120 | 115 | 540 | ||||
50 | 32 | 165 | 125 | 100 | 20 | 3 | 4-18 | 65 | 185 | 145 | 120 | 20 | 3 | 4-18 | 135 | 120 | 618 | |||||
65 | 40 | 185 | 145 | 120 | 20 | 3 | 4-18 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 160 | 140 | 710 | |||||
80 | 50 | 200 | 160 | 135 | 20 | 3 | 8-18 | 100 | 220 | 180 | 155 | 22 | 3 | 8-18 | 160 | 150 | 730 | |||||
100 | 65 | 220 | 180 | 155 | 20 | 3 | 8-18 | 150 | 285 | 240 | 210 | 24 | 3 | 8-23 | 225 | 175 | 892 | |||||
150 | 100 | 285 | 240 | 210 | 24 | 3 | 8-23 | 200 | 340 | 295 | 265 | 26 | 3 | 12-23 | 240 | 235 | 1135 | |||||
200 | 125 | 340 | 295 | 265 | 26 | 3 | 12-23 | 250 | 405 | 355 | 320 | 30 | 3 | 12-26 | 290 | 210 | 1135 | |||||
SFA48Y-40 SFA48Y-40I SFA48Y-40V | 25 | 16 | 115 | 85 | 58 | 65 | 16 | 2 | 4 | 4-14 | 32 | 140 | 100 | 78 | 18 | 2 | 4-18 | 110 | 95 | 429 | ||
32 | 20 | 140 | 100 | 66 | 78 | 18 | 2 | 4 | 4-18 | 40 | 150 | 110 | 85 | 18 | 3 | 4-18 | 115 | 100 | 421 | |||
40 | 25 | 150 | 110 | 76 | 85 | 18 | 3 | 4 | 4-18 | 50 | 165 | 125 | 100 | 20 | 3 | 4-18 | 120 | 115 | 540 | |||
50 | 32 | 165 | 125 | 88 | 100 | 20 | 3 | 4 | 4-18 | 65 | 185 | 145 | 120 | 20 | 3 | 4-18 | 135 | 120 | 618 | |||
65 | 40 | 185 | 145 | 110 | 120 | 22 | 3 | 4 | 8-18 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 160 | 140 | 710 | |||
80 | 50 | 200 | 160 | 121 | 135 | 22 | 3 | 4 | 8-18 | 100 | 220 | 180 | 155 | 22 | 3 | 8-18 | 160 | 150 | 730 | |||
100 | 65 | 235 | 190 | 150 | 160 | 24 | 3 | 4.5 | 8-23 | 150 | 285 | 240 | 210 | 24 | 3 | 8-23 | 225 | 175 | 892 | |||
150 | 100 | 300 | 250 | 204 | 218 | 30 | 3 | 4.5 | 8-26 | 200 | 340 | 295 | 265 | 26 | 3 | 12-23 | 240 | 235 | 1135 | |||
200 | 125 | 375 | 320 | 260 | 282 | 38 | 3 | 4.5 | 12-30 | 250 | 405 | 355 | 320 | 30 | 3 | 12-26 | 290 | 310 | 1135 | |||
SFA48Y-64 SFA48SB-64 SFA48Y-64I SFA48SB-64I SFA48Y-64V SFA48SB-64V | 25 | 16 | 140 | 100 | 58 | 78 | 22 | 2 | 4 | 4-18 | 32 | 140 | 100 | 66 | 78 | 18 | 2 | 4 | 4-18 | 110 | 100 | 429 |
32 | 20 | 155 | 110 | 66 | 82 | 24 | 2 | 4 | 4-23 | 40 | 150 | 110 | 76 | 85 | 18 | 3 | 4 | 4-18 | 130 | 110 | 421 | |
40 | 25 | 170 | 125 | 76 | 95 | 24 | 3 | 4 | 4-23 | 50 | 165 | 125 | 88 | 100 | 20 | 3 | 4 | 4-18 | 135 | 120 | 540 | |
50 | 32 | 180 | 135 | 88 | 105 | 26 | 3 | 4 | 4-23 | 65 | 185 | 145 | 110 | 120 | 22 | 3 | 4 | 8-18 | 160 | 130 | 618 | |
50 | 32 | 180 | 135 | 88 | 105 | 26 | 3 | 4 | 4-23 | 80 | 200 | 160 | 121 | 135 | 22 | 3 | 4 | 8-18 | 160 | 145 | 710 | |
65 | 40 | 205 | 160 | 110 | 130 | 28 | 3 | 4 | 8-23 | 80 | 200 | 160 | 121 | 135 | 22 | 3 | 4 | 8-18 | 175 | 160 | 710 | |
80 | 50 | 215 | 170 | 121 | 140 | 30 | 3 | 4 | 8-23 | 100 | 235 | 190 | 150 | 160 | 24 | 3 | 4.5 | 8-23 | 175 | 160 | 730 | |
100 | 65 | 250 | 200 | 150 | 168 | 32 | 3 | 4.5 | 8-26 | 125 | 270 | 220 | 176 | 188 | 28 | 3 | 4.5 | 8-25 | 220 | 200 | 800 | |
100 | 65 | 250 | 200 | 150 | 168 | 32 | 3 | 4.5 | 8-26 | 150 | 300 | 250 | 204 | 218 | 30 | 3 | 4.5 | 8-26 | 220 | 200 | 892 | |
150 | 100 | 345 | 280 | 204 | 240 | 38 | 3 | 4.5 | 8-34 | 200 | 375 | 320 | 260 | 282 | 38 | 3 | 4.5 | 12-30 | 280 | 280 | 1135 | |
200 | 125 |
