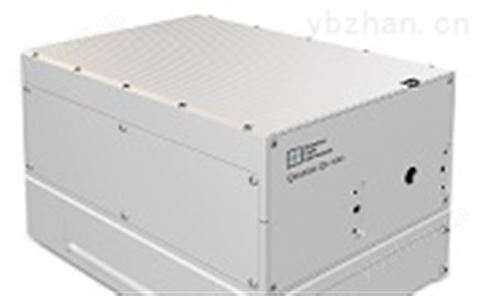

1064nm二極管泵浦Q開關激光器QuaTas-Q1-100是激光器市場上*的風冷型Nd:YAG半導體泵浦固體脈沖激光器和1064nmQ開關激光器,非常適合高峰值功率激光應用,是激光誘導擊穿光譜LIBS,LCD修復,基質輔助激光解吸電離MALDI,時間飛行光譜TOFS,脈沖光沉積PLD,激光粒子成像測試PIV,激光LIDAR遙感等應用理想的1064nm激光器
| Model | Quantas-1064 | ||||
| Q1A-50 | Q1A-100 | Q1B-100 | Q1C-100 | Q1D-100 | |
| Wavelength | 1064 nm | ||||
| Pulse energy | |||||
| Fundamental | 5 mJ | 2.5 mJ | 8 mJ | 15 mJ | 25 mJ |
| 532 nm | 2.5 mJ | 1.25 mJ | 4 mJ | 7.5 mJ | 12.5 mJ |
| 355 nm | 1.25 mJ | 0.6 mJ | 2 mJ | 5 mJ | 6 mJ |
| 266 nm | 0.6 mJ | 0.3 mJ | 1.5 mJ | 2.5 mJ | 3 mJ |
| 213 nm | 0.2 mJ | 0.06 mJ | 0.5 mJ | 1 mJ | 1.5 mJ |
| Pulse repetition rate 2) | 50 Hz | 100 Hz | |||
| Pulse duration | < 10 ns 3) | ||||
| Pulse-to-pulse energy stability | < 0.5 % rms 4) | ||||
| Power drift | ± 3% 5) | ||||
| Beam profile | Bell-shaped, >75 % fit to Gaussian | ||||
| Beam divergence 6) | < 1.2 mrad | ||||
| Beam diameter 7) | 2.5 mm | ||||
| Polarization | Linear, horizontal at 1064 nm | ||||
| Optical jitter | < 0.5 ns rms 8) | ||||
| Dimensions | |||||
| Laser head (W x L x H) | 160 × 230 × 141 mm3 | ||||
| Harmonics generator (W x L x H) | 113 × 242 × 112 mm3 | ||||
| Controller unit (W x L x H) | 160 × 70 × 140 mm3 | ||||
| Power adapter (W x L x H) | 80 × 120 × 60 mm3 | ||||
| Operation environment | 15-30°C, 10-80% humidity (non-condensing), 90-230 VAC, 47-63 Hz 9) | ||||
| Power consumption | < 50 W | < 100 W | < 150 W | ||
